en:lb [PhD supplementary materials]

Gradient-enhanced model

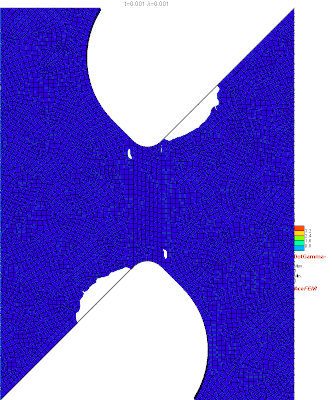

Distribution of $\gamma$ (left) and $\dot{\gamma}$ (right) for gradient-enhanced model and internal length equal to 10 mm. White parts of the sample are caused by graphic problems.

Viscoplastic model

Plot of $\dot{\gamma}$ along horizontal axis made in the center of the sample.

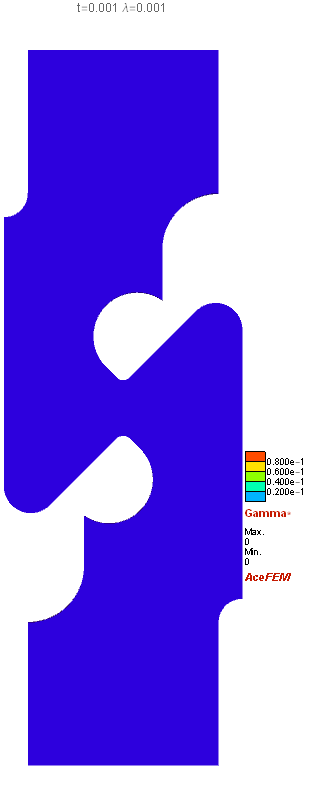

Distribution of $\gamma$ (left) and $\dot{\gamma}$ (right) for viscoplastic model and viscosity equal to 0.0004. White parts of the sample are caused by graphic problems.

Gradient-enhanced model

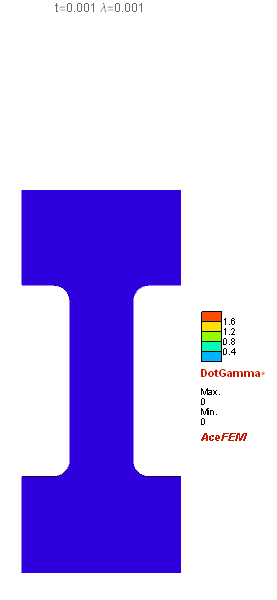

Distribution of $\dot{\gamma}$ for gradient-enhanced model and internal length equal to 10 mm.

Viscoplastic model

Distribution of $\dot{\gamma}$ for viscoplastic model and viscosity equal to 4 (left) and 0.04 (right).
